What Is the Difference Between Multi-Split Systems and VRF Systems

The HVAC sector is constantly evolving, with new technologies transforming how we heat and cool our spaces. Notably, the multi-split system and Variable Refrigerant Flow (VRF) system are two standout options that prioritize energy efficiency. However, selecting between these two systems can be challenging. Understanding their differences in structure, operation, capacity, efficiency, and application is essential to making the right choice for your needs.

Multi-split AC outdoor Unit

Structure

Multi-Split System

A multi-split system features one outdoor unit connected to multiple indoor units. There are multi-pipes split from the out door units, and each pipe connects 1 indoor unit. Each indoor unit operates independently, providing custom temperature control in different areas of a building. The indoor units can be wall-mounted units, ceiling cassette units, 4-way units, 1-way units, slim duck units, floor console, floor-ceiling units, etc. Typically, the outdoor unit can support 2 to 5 indoor units, but this can vary by model. For instance, a common multi-split setup may include one outdoor unit serving three different rooms, allowing varied temperature settings to suit individual preferences.

Multi-split Indoor Units

VRF System

In contrast, a VRF system also connects a single outdoor unit to several indoor units. (For example, 1 outdoor unit with 11 indoor units). Each indoor unit is distributed by a Y-shape copper pipe. What sets VRF apart is its dynamic refrigerant flow management. It adjusts the refrigerant sent to each indoor unit based on specific comfort needs. For example, in a large office building, if one area is unoccupied, the system can reduce refrigerant flow to that space while maintaining optimal conditions elsewhere. This enhances comfort and flexibility compared to traditional multi-split systems.

Working Principle

Multi-Split System

The operation of a multi-split system is straightforward. When cooling is needed, the outdoor unit absorbs heat from inside and releases it outdoors. The refrigerant then flows to the indoor units, cooling designated areas. However, the outdoor unit's compressor generally operates at a fixed capacity. This means that during times of low demand, such as early mornings or late afternoons, energy may be wasted.

VRF System

VRF System

The VRF system operates by modulating refrigerant flow. It employs a variable-speed compressor that adjusts its activity based on each indoor unit's current demand. For instance, if a room is already cool and doesn’t require additional cooling, the compressor can slow down, ensuring energy efficiency. Research indicates that VRF systems can achieve energy savings of up to 30% compared to standard multi-split systems, making them a smart choice for energy-conscious consumers.

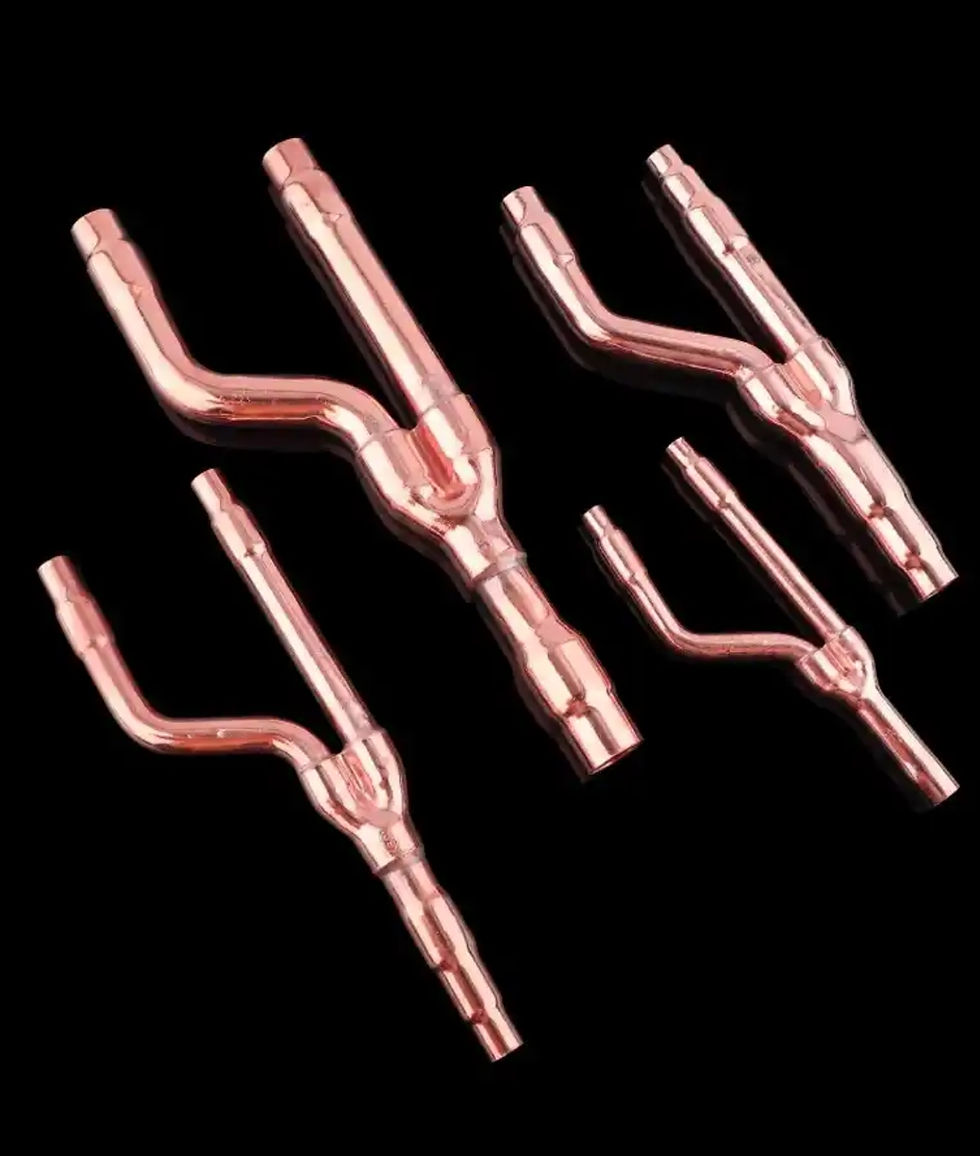

Y-shape Copper Pipe for VRF

Capacity

Multi-Split System

Multi-split systems have limited capacity and are generally effective in smaller residential or commercial spaces where moderate cooling is required. They excel in settings like small apartments, where the demand for cooling isn’t extremely high. For example, a two-bedroom apartment might be well-served by a multi-split system with one outdoor unit supporting indoor units in the living room and each bedroom.

VRF System

VRF systems offer a broader capacity range compared to multi-split systems. They are ideal for larger commercial settings due to their ability to support many indoor units from a single outdoor unit. For instance, a high-rise office complex might utilize a VRF system to maintain comfortable conditions on every floor, responding to the varied cooling needs of different zones. With capacities that can exceed what multi-split systems offer, VRF systems provide tailored solutions for various building sizes and cooling requirements.

Efficiency

Multi-Split System

Efficiency in multi-split systems can vary by model. Many use fixed-speed compressors, which can result in energy loss during low cooling demands. Although some models are energy-efficient, their performance typically does not match that of VRF systems over time. Studies show that fixed-speed systems may operate at about 10-20% energy loss during off-peak times.

VRF System

VRF systems are known for their high energy efficiency. Their variable-speed compressors adjust based on the precise cooling or heating needs. This means less energy is wasted, and in some cases, VRF systems can recover heat from one zone to be used in another, improving efficiency further. For example, in a commercial setting, heat from an occupied office area can preheat water for a nearby bathroom, maximizing energy use. This aspect contributes to potential energy savings of up to 30-40%.

Multi-split VS VRF

Application Area

Multi-Split System

Multi-split systems are well-suited for small to medium-sized residential and commercial applications. They work effectively in environments where distinct areas require different climate control, such as in a small business with several rooms. A typical use case might be a law office where each lawyer has their own office but only needs modest cooling.

VRF System

VRF systems excel in larger commercial applications, high-rise buildings, and complex layouts that demand precise temperature control. Their flexibility makes them especially appealing for hotels, hospitals, and expansive office complexes. For example, in a luxury hotel, a VRF system can maintain comfortable temperatures in guest rooms while managing diverse needs in conference areas and reception.

Recommendations

When choosing between a multi-split system and a VRF system, consider critical elements such as the size of the building, your budget, and the efficiency requirements for your long-term operational costs.

If your needs lean toward flexibility and efficiency, especially in medium to large spaces, VRF systems are an excellent option. Their adaptable nature not only improves comfort but also translates to energy savings over time.

Conversely, for smaller applications where budget constraints exist and simplicity is crucial, a multi-split system could be the right choice. This system offers adequate performance and is typically easier and quicker to install, making it a practical option for homes and small office setups.

Final Thoughts

Both multi-split systems and VRF systems play vital roles in the HVAC landscape, each with unique strengths and when to use them. By understanding their differences in structure, operating principles, capacity, efficiency, and application areas, you can make a more informed and tailored decision.

For larger spaces requiring precise temperature control and energy efficiency, VRF systems provide an increasingly attractive solution. However, for smaller installations focused on cost and ease of use, multi-split systems hold their own as a reliable alternative.

As interest in energy-efficient HVAC solutions rises, evaluating both systems will aid homeowners and businesses in achieving optimal comfort and operational efficiency.
